Pleated Patch Pocket Free Pattern and Tutorial

Tutorial & Free Pattern: Pleated Patch Pocket

I made a pair Emily Culottes for myself last week for the Style Maker Fabrics Spring Canvas Blog Tour. I didn’t get to put any pockets in, because I couldn’t decide the type of pockets to add. But I really miss having some pockets to put my hands and my things in. Luckily, it’s not too late to add them now. I want to use patch pockets, just like my first pair of Emily Culottes, but I wanted to add some twist to the pockets.

Pleats are “in” for Spring 2016, at least that’s what I’ve read. I am not a particularly trendy person. My style tends to be timeless. But I do like pleats. It adds some intricacy and interest to the garments. So I decided to add pleats to my patch pockets.

Even though I am adding pleats to pockets in this tutorial, you could add pleats to many other parts of a garment, such as a yoke or a bodice; the principles are the same. Here I use the Emily Culottes pattern as a demonstration. For those of you who have the pattern, you know that the top of these patch pockets are slanted. But of course you could use a regular symmetrical patch pocket too. I have these pleats vertical and centered on the pocket, but you could even create diagonal pleats using the same method if you’d like.

(If you don’t want to slice and tape your pockets to create pleats, you can download my ready-made one at the end; however, you will still need to read below for instructions on how to put the pleated pocket together.)

I also want to mention that, a while back, I wrote a tutorial for sewing the patch pocket. It explains what these pattern pieces are for and how to construct the pocket.

These are the pieces to create the patch pockets. Pattern #5 is the main piece with an integrated facing. Pattern #7 is the lining, and pattern #6 is used for the interfacing that gets applied to the facing portion of pattern #5.

Pleated Patch Pocket Free Pattern and Tutorial

This is how the pieces fit together. The previous post will tell you in detail too. Pattern #5 is folded as marked (on the Fold Line), and the lining (pattern #7 that gets sewn to the facing). Note that the lining/facing portion is smaller than the outward facing side of the pocket. It is to ensure that the seam will roll toward the lining side.

Pleated Patch Pocket Free Pattern and Tutorial

To add pleats, we need to slice up pattern #5. We are not going to change the facing portion, so I am cutting it off.

Pleated Patch Pocket Free Pattern and Tutorial

Then I fold the pocket in half to find the middle point.

Pleated Patch Pocket Free Pattern and Tutorial

Unfold the pocket and you’ll see the middle point. So I mark the middle line, as well as 1″ (2.5 cm) on each side of the middle line.

Pleated Patch Pocket Free Pattern and Tutorial

I also draw a horizontal line perpendicular to the three lines. It’s roughly in the middle of the pocket, but the exact position is not that important, as long as it is perpendicular to the three lines.

Pleated Patch Pocket Free Pattern and Tutorial

I cut the pattern using the three vertical lines. I now have four pieces.

Pleated Patch Pocket Free Pattern and Tutorial

On another piece of blank paper, I draw a vertical line on the leftish side, and a horizontal line in the middle, making an uneven cross. Again, exact positions are not important as long as the two lines are perpendicular to each other.

Pleated Patch Pocket Free Pattern and Tutorial

I tape the four pieces of pocket on this piece of paper. The cut edge of the first piece is aligned vertically and horizontally with the uneven cross. One inch (2.5 cm) from the cut edge, I tape the second piece of the pocket, making sure that the horizontal middle line is aligned with the paper’s. I repeat the same procedure for the third and four pieces of the pocket. Essentially, you end up with three 1″ (2.5 cm) gaps in the pocket.

Pleated Patch Pocket Free Pattern and Tutorial

Now I need to cut out the pocket, and at the same time “true” the pocket. To do that, I need to fold the pleats like I would on the fabric. You can fold the pleats all toward the left or all toward the right; either way would work. But the shape of the trued edges will look different depending on which side you are folding the pleats. Here I am folding the pleats toward the right-hand side.

Pleated Patch Pocket Free Pattern and Tutorial

The pleats are all folded.

Pleated Patch Pocket Free Pattern and Tutorial

And now I can cut the pocket out.

Pleated Patch Pocket Free Pattern and Tutorial

When you open the pocket piece back up, you can see the jagged edges of the pleats, which is exactly what we want.

Pleated Patch Pocket Free Pattern and Tutorial

Remember I cut the facing from the pocket earlier? We will have to sew them back together later, hence, we need some seam allowance in order to do that. I add 3/8″ (1 cm) of seam allowance to the top of the pocket, as well as the bottom of the facing. Note that I could have added the seam allowance before I cut the pockets into four pieces; the result would be exactly the same whether I add the seam allowance now or earlier. Yes, there’s a lot of tape! I used to buy scotch tape by the dozen, but now I draft digitally, so I don’t use as much.

Pleated Patch Pocket Free Pattern and Tutorial

I cut out the pocket and the facing with the seam allowances.

Pleated Patch Pocket Free Pattern and Tutorial

I am ready to cut out all the pieces! On the left side is my lining (sloth fabric), the top is my facing, the bottom is my main pocket, and the right-hand side is my interfacing.

Pleated Patch Pocket Free Pattern and Tutorial

I folded the pleats, just like the way I folded the paper pattern earlier. I also baste the pleats closed at this point. Note that you can choose to actually sew the pleats shut. The decision is yours. Mine is only basted and I will remove them later on.

Pleated Patch Pocket Free Pattern and Tutorial

I apply the interfacing to the facing. The interfacing will not cover the seam allowance that we just added.

Pleated Patch Pocket Free Pattern and Tutorial

Now the pocket and the facing are stitched back together. If you are using the Emily Culottes slanted top pocket, the facing would look like this (or the mirrored image for the other pocket).

Pleated Patch Pocket Free Pattern and Tutorial

In addition, I understitch the facing (the seam allowances are pressed toward the facing and a line is stitched through the facing and two layers of seam allowances). This way, the seam will slightly roll toward the facing and will not be visible on the public side.

Pleated Patch Pocket Free Pattern and Tutorial

See? When the facing is folded back, the seam is not visible.

Pleated Patch Pocket Free Pattern and Tutorial

From this point on, the piece is treated as before, and you can follow the instructions of the pattern, or my previous tutorial, to continue with the pocket construction.

And you pocket will look like this.

Pleated Patch Pocket Free Pattern and Tutorial

Lining side:

Pleated Patch Pocket Free Pattern and Tutorial

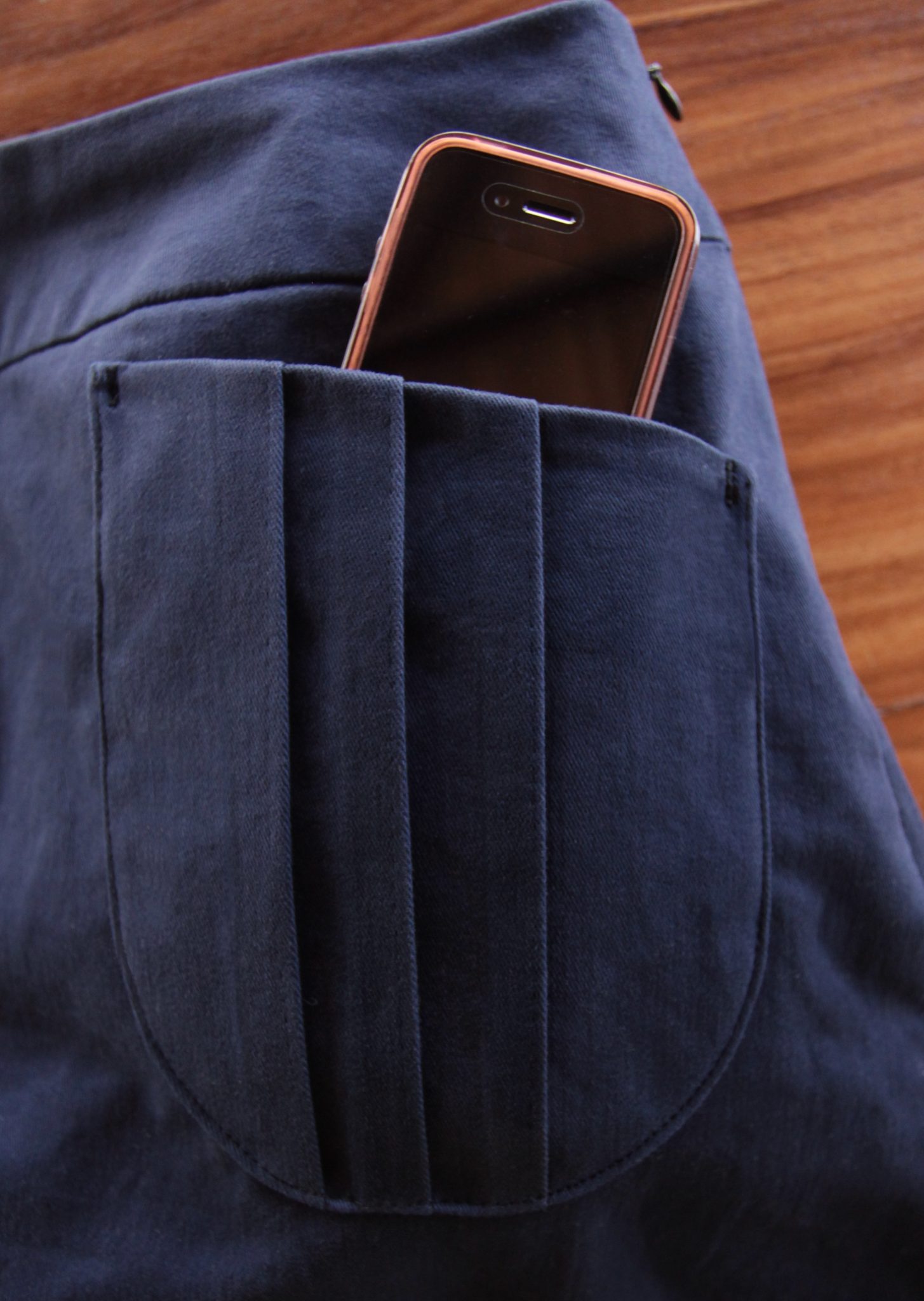

Topstitch to the garment, and it’s done!!

Pleated Patch Pocket Free Pattern and Tutorial

I think that it’s good to know how to do this, so you could add pleats to other parts of your garment. If you don’t feel like creating a pleated pocket on your own, here’s an already-made pattern for you.

Enjoy!
